Mounting Cap

Battery Master Switch with Key

Nominal Voltage  max. 24 V.
Protection Grade  IP6K6-DIN 40050 Part 9  using cap

Rating max.

Contin. rating
max.

loaded switching

Order-Nr.
without cap

Order-Nr.
with cap

Fig.

2500 A /
5 Sek.

250 A

--

B 612.0050-5

B 612.0050-5.4

1

2500 A /
5 Sek.

250 A

50 x at 250 A

B 612.0052-5

B 612.0052-5.3

1

2500 A /
5 Sek.

250 A

--

B 612.0050-6

B 612.0050-7

2

2500 A /
5 Sek.

250 A

50 x at 250 A

B 612.0052-6

B 612.0052-6.1

2

max. rating

max. continuous rating

switching while loaded

Order-Nr.
without Cap

Order-Nr.
with Cap

Fig.

2500 A /
5 Sek.

250 A

--

B 612.0050-5

B 612.0050-5.4

1

2500 A /
5 Sek.

250 A

50 x bei 250 A

B 612.0052-5

B 612.0052-5.3

1

2500 A /
5 Sek.

250 A

--

B 612.0050-6

B 612.0050-7

2

2500 A /
5 Sek.

250 A

50 x bei 250 A

B 612.0052-6

B 612.0052-6.1

2

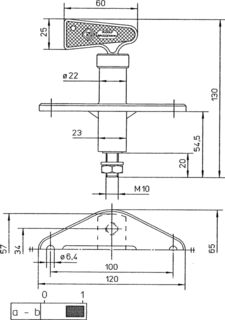

Drawing
Fig. 1:
B 612.0050-5 / B 612.0050-5.4
B 612.0052-5 / B 612.0052-5.3

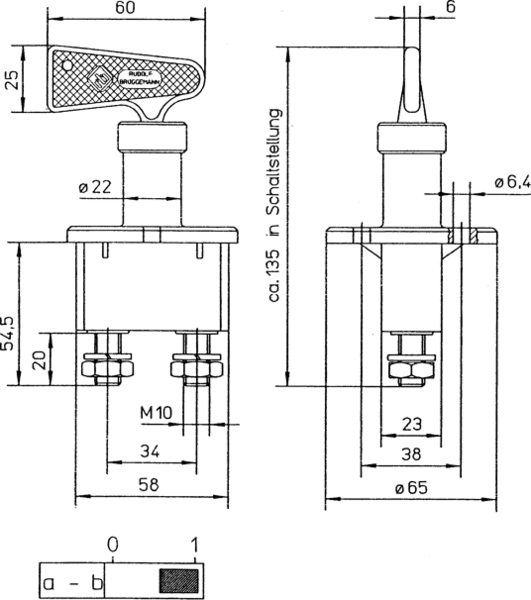

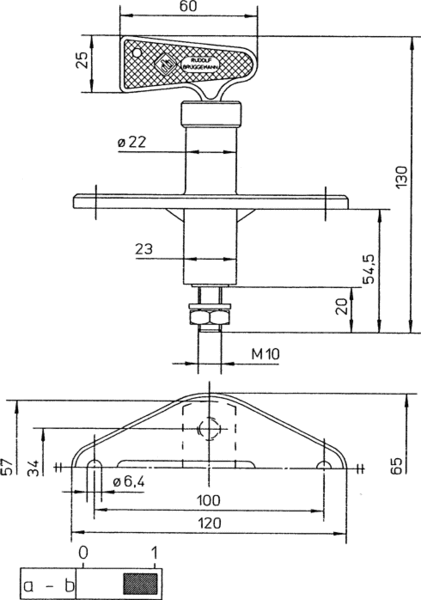

Drawing
Fig. 2:
B 612.0050-6 / B 612.0050-7
B 612.0052-6 / B 612.0052-6.1

Accesoires

Key:
Order-Nr.: B 512.0028-5

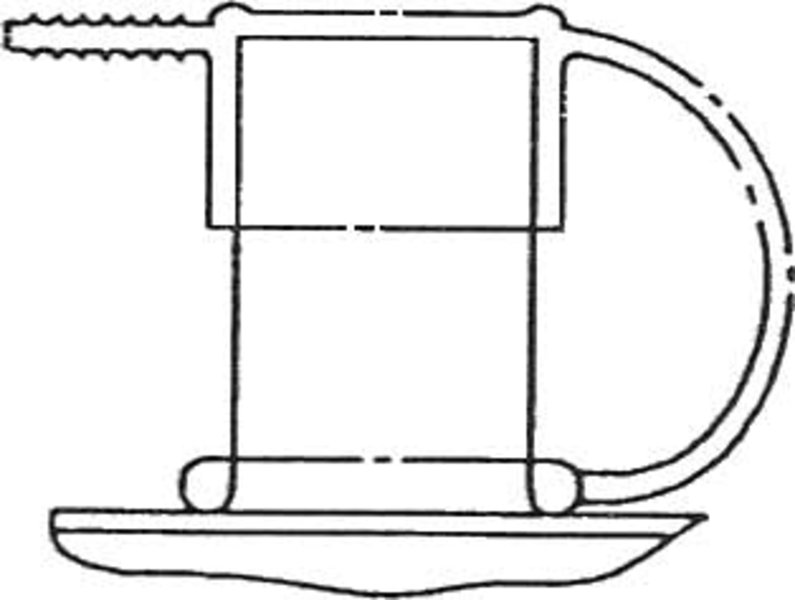

Cap:
Order-Nr.: B 512.0047
