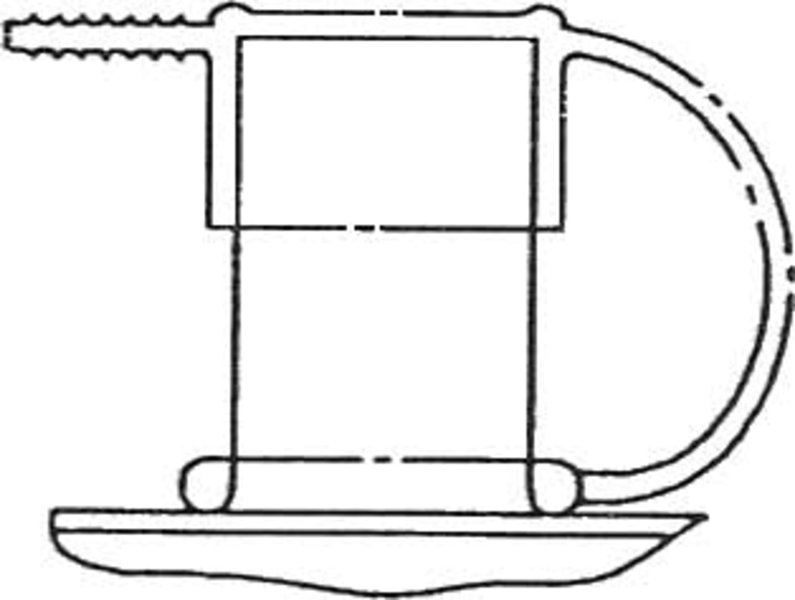

Mounting Example cap

Battery Master Switch with Key

Nominal Voltage max. 24 V.
Protection Grade IP6KX-DIN 40050 Part 9 if using cap

max. rating

max  continued
rating

Order-Nr.
without Cap

Order-Nr.
with Cap

Fig.

500 A / 5 Sek.

100 A

B 612.0009-5

B 612.0009-5.1

1

500 A / 5 Sek.

100 A

B 612.0039-5

B 612.0039-5.2

2

Drawing

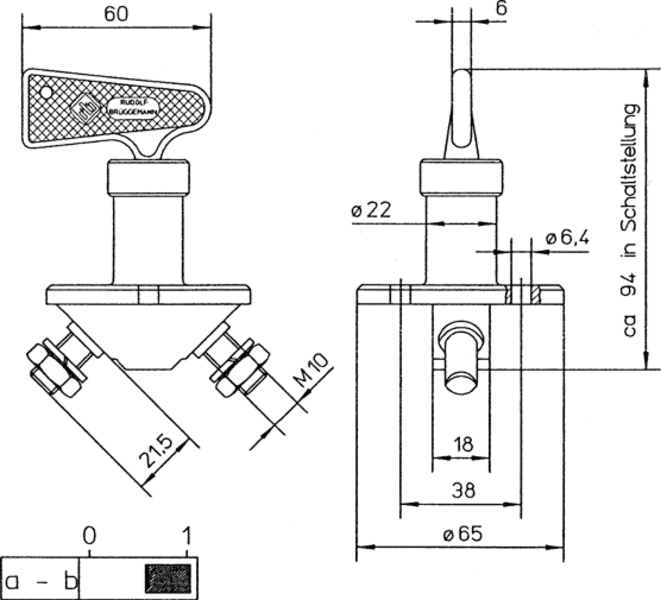

Fig. 1:
B 612.0009-5 / B 612.0009-5.1
Drawing

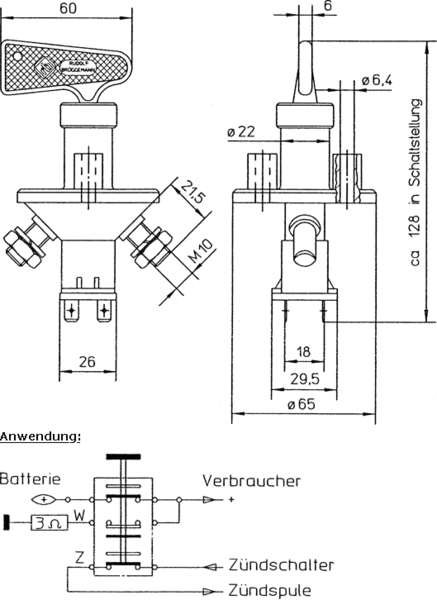

Fig. 2:
B 612.0039-5 / B 612.0039-5.2

(Technical illustrations: larger view by clicking onto them)

Accesoires

Key :
Order-Nr.: B 512.0008-5

Cap:
Order-Nr.: B 512.0047

These switches can also be delivered without a key or with a key fixed to the switch
